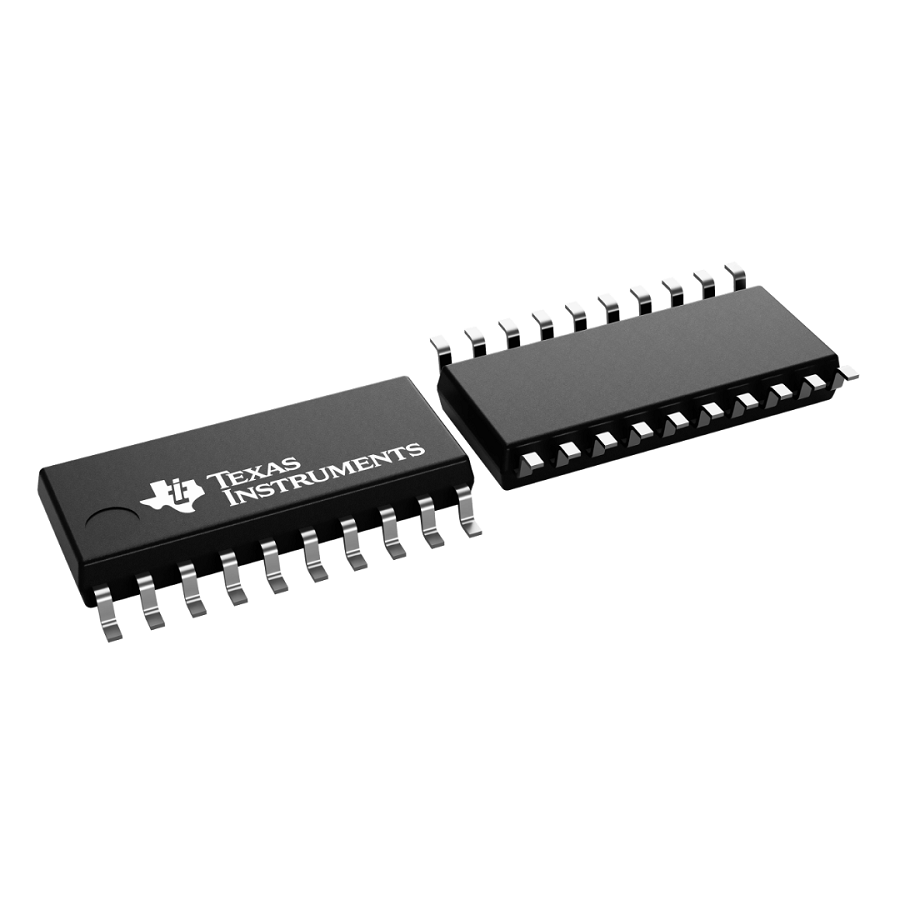

SN74LS240NSR
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74LS240NSR
Datasheet:
Description:
Buffers, Drivers, Resceivers and Transceivers SO-20 SMD/SMT 3-State
| Parameter | Value |
|---|---|
| Length | 12.6 mm |
| Width | 5.3 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 20 |
| Height | 2 mm |
| Packaging | Reel |
| Thickness | 1.95 mm |
| RoHS | Compliant |
| Polarity | Inverting |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Elements | 2 |
| Number of Circuits | 2 |
| Operating Supply Voltage | 5 V |
| Output Type | 3-State |
| Lifecycle Status | Active |
| Max Supply Voltage | 5.25 V |
| Min Supply Voltage | 4.75 V |
| Number of Bits | 8 |
| Operating Supply Current | 44 µA |
| Quiescent Current | 44 mA |
| Propagation Delay | 18 ns |
| High Level Output Current | -15 mA |
| Low Level Output Current | 24 mA |
| Logic Function | Buffer, Inverter |
| Number of Inputs | 4 |
| Number of Bits per Element | 4 |
| Number of Outputs | 8 |
| Number of Input Lines | 8 |
| Number of Output Lines | 8 |
Stock: 25
Distributors
pcbx
pcbxUnit Price$1.12003
Ext.Price$1.12003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.12003 | $1.12003 |
| 10 | $1.09229 | $10.92290 |
| 25 | $1.08419 | $27.10475 |
| 50 | $1.07615 | $53.80750 |
| 100 | $1.06816 | $106.81600 |
